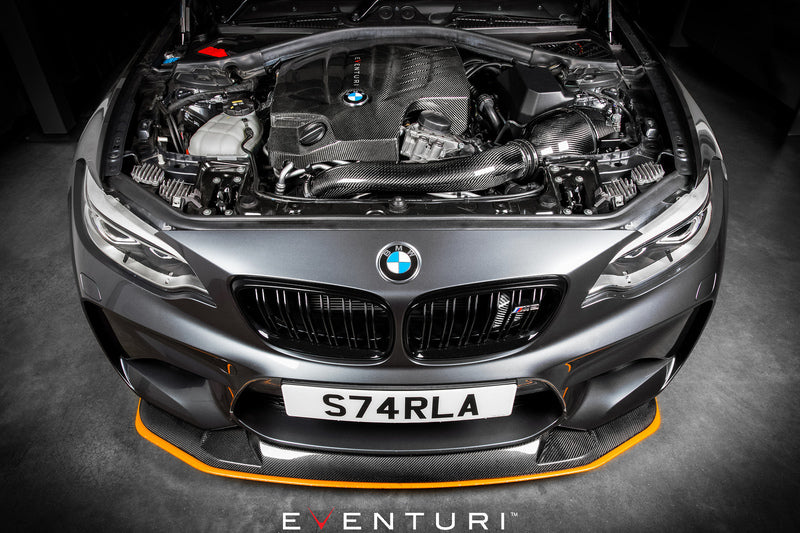

BMW M2 / M235I / M135I
The F22 M2 Eventuri intake system is a perfect example of their “Complete System” principal. It demonstrates the perfect balance between allowing for unrestricted airflow with our open filter housing and cold air saturation with our scoop and duct combination. Every detail has been meticulously developed from the prepreg carbon pieces to the precision bracket work. This intake sets a new benchmark in design and craftsmanship for the F22 and F87 platforms. Also fits the M135i and M235i with the N55 engine.
The Eventuri Difference
The M2 Eventuri system uses Eventuri's Patent Pending Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
The Eventuri M2 N55 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:
Each intake system consists of:
- Prepreg Carbon Fibre Venturi Housing
- High Flow Double Cone Air Filter
- Aluminium Cowl for smooth airflow entry
- Prepreg Carbon Fibre Intake Tube with integrated MAF Sensor Mount
- Prepeg carbon Fibre Air Scoop
- Laser Cut Intake Duct
- Laser Cut Stainless Steel Brackets
- High quality Silicon couplers with BMW specification hose clamps
Carbon Intake Housing Assembly
The filter housing comprises of a high flow filter, aluminium cowl, laser cut bracket and the carbon pod itself. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the intake tube. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patent pending design and a regular intake system.
Carbon Fibre Intake Tube
Eventuri's intake tube is crafted from 100% prepreg carbon fibre. Each tube has an integrated MAF sensor mount and breather adapter which are CNC machined from aluminium. The inlet tube has been designed to provide a smooth path for the airflow to negotiate from the filter to the stock turbo tube. In order to clear the fan shroud we smoothly transitioned the cross section from a circle to an oval and maintained constant area. This ensures the airflow remains laminar and allows the turbo to function with minimal drag.
Carbon Fibre Intake Scoop
The scoop was designed for maximum efficiency in directing the incoming air to the stock duct openings. Many aftermarket scoops have a large flat area almost perpendicular to the oncoming air - not great for channeling it into the ducts as the airflow just "hits" this flat portion and creates turbulence.
The Eventuri Scoops have been designed to sit directly behind the front grills to capture as much air as possible and with a continuous curve to the duct opening to ensure this airflow is efficiently channeled. The following video explains the design features.
Intake Duct
The filter housing is positioned with the opening nestled inside the intake duct. This duct has been designed to fit over the stock cold air ducts and direct ambient air from the scoop into the filter. This ensures that the heated engine bay air is effectively displaced from around the filter whilst the car is in motion.
Having an effective cold air feed to the filters is an essential part of Eventuri's design. Simply having some heat shields in place is not an effective means of avoiding heated air from entering the filters unless the shields create an air tight envelope around the filters. The scoops and ducts in Eventuri's system combine to provide the filter openings with ambient air and maintain low intake air temperature.
